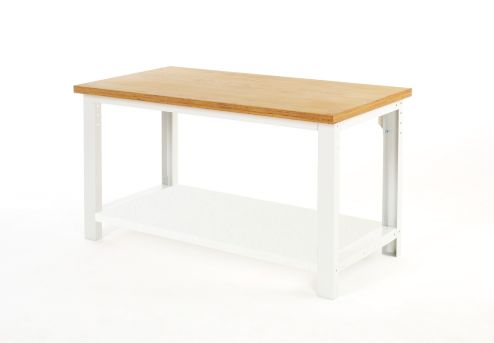

Bott Cubio Bench with Full Depth Shelf
Part of the Garage Cabinets collection
sku: BottBenchFullShelf
Bott Cubio, braced framework benches. Strong and robust with a variety of optional suspended cabinets with a variety of drawer colours. Up to 800kg U.D.L. capacity with a 10 year-extended guarantee.
Price includes delivery to most of the UK mainland. More info
Buy online or by telephone on 01743 742028 during office hours
Need advice or a detailed quotation? Call one of our garage interior design and installation experts.
Bott Cubio, braced framework benches. Strong and robust with a variety of optional suspended cabinets and drawer colours. Up to 800kg U.D.L. capacity with a 10 year-extended guarantee. Two width options 1500mm or 2000mm and two depth options 750mm or 900mm, all benches 840mm high.
Worktop options:
- Multiplex, 40mm resin bonded, layered beech ply. A tough worktop suitable for most applications.
- Lino, 40mm overall with a 38m particle board core and a 2mm linoleum surface with durable plastic edge banding. An easy clean, general duty top ideal for office, assembly and storage areas.
Worktop & Dimension Options:
All benches are 840mm High.
| Length x Depth (mm) | Mpx worktop | Lino worktop | |
| 1500 | 750 | BC3503 | BC3504 |
| 1500 | 900 | BC4133 | BC4134 |
| 2000 | 750 | BC3505 | BC3506 |
| 2000 | 900 | BC4135 | BC4136 |
Drawer & Colour Options:
| 650mm Wide x 250mm / 400mm High Cabinets | |||||
![]() |
![]() |
![]() |
|||
| 750mm deep benches may only use the 650mm deep drawers | |||||
| Model | Drawer Qty / Height | 650mm Deep | 750mm Deep | ||
| A | 1x 150 | BC9001 | BC7092 | ||
| B | 2x 150 | BC9005 | BC7108 | ||

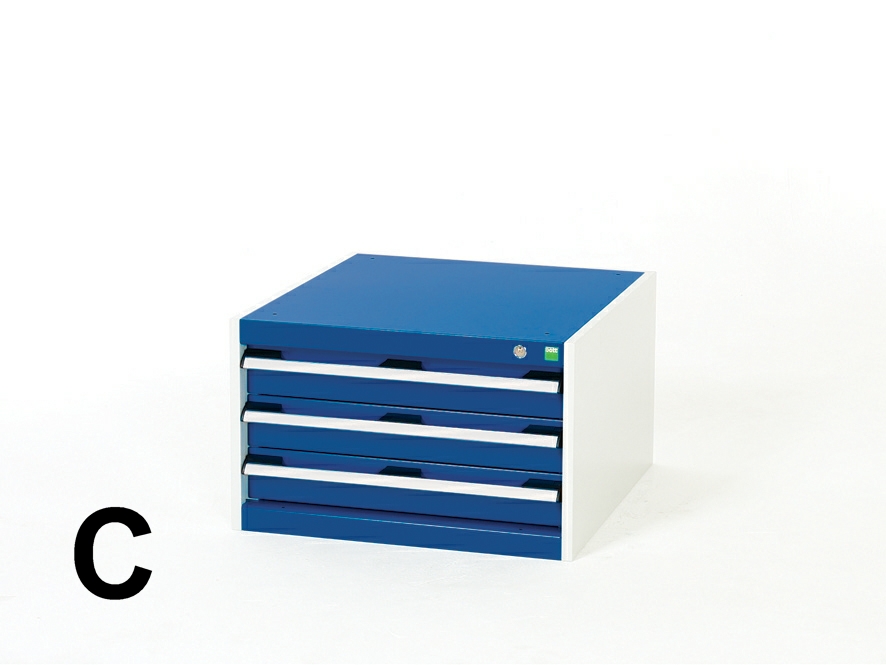

| C | 3x 100 | BC9009 | BC7096 | ||
| 650mm Wide x 600mm High Cabinets | |||||
![]() |
![]() |
![]() |
|||
| 750mm deep benches may only use the 650mm deep drawers | |||||
| Model | Drawer Qty / Height | 650mm Deep | 750mm Deep | ||

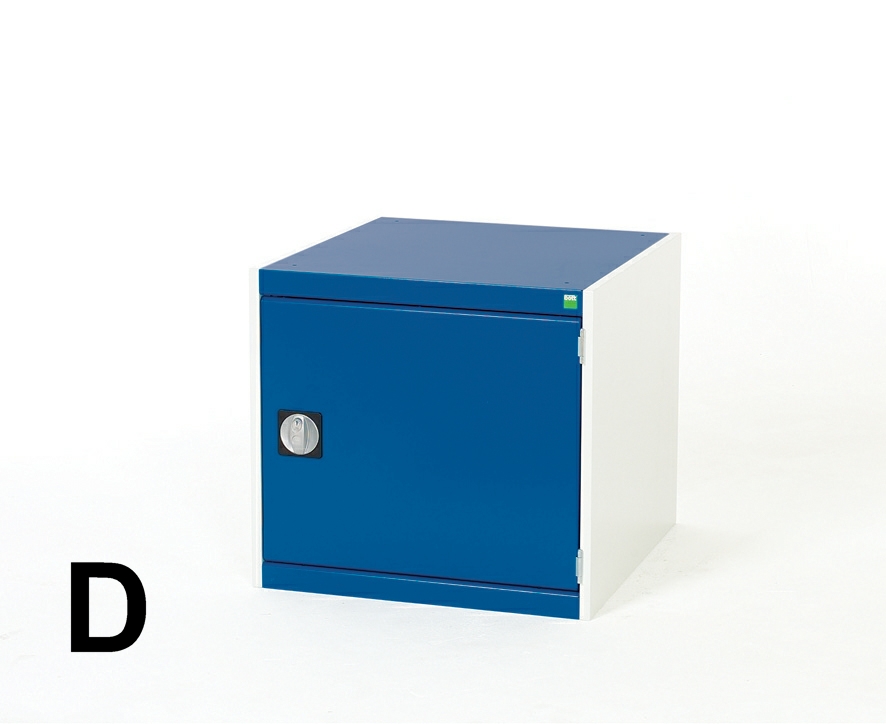

| D | 500 door | BC9118 | BC7098 | ||

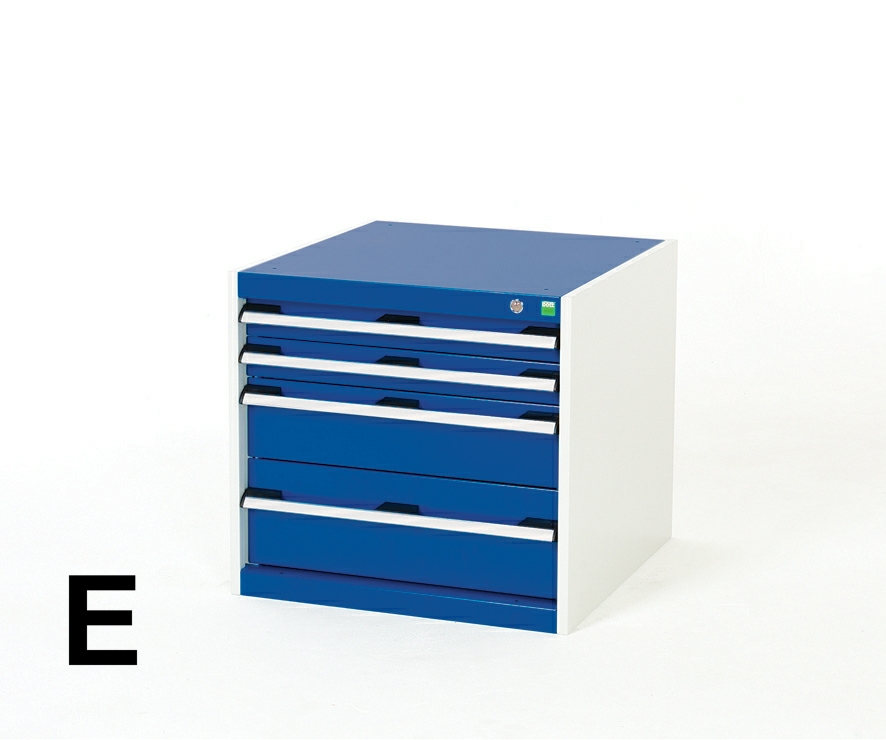

| E | 2x 75, 1x 150, 1x 200 | BC9015 | BC7100 | ||

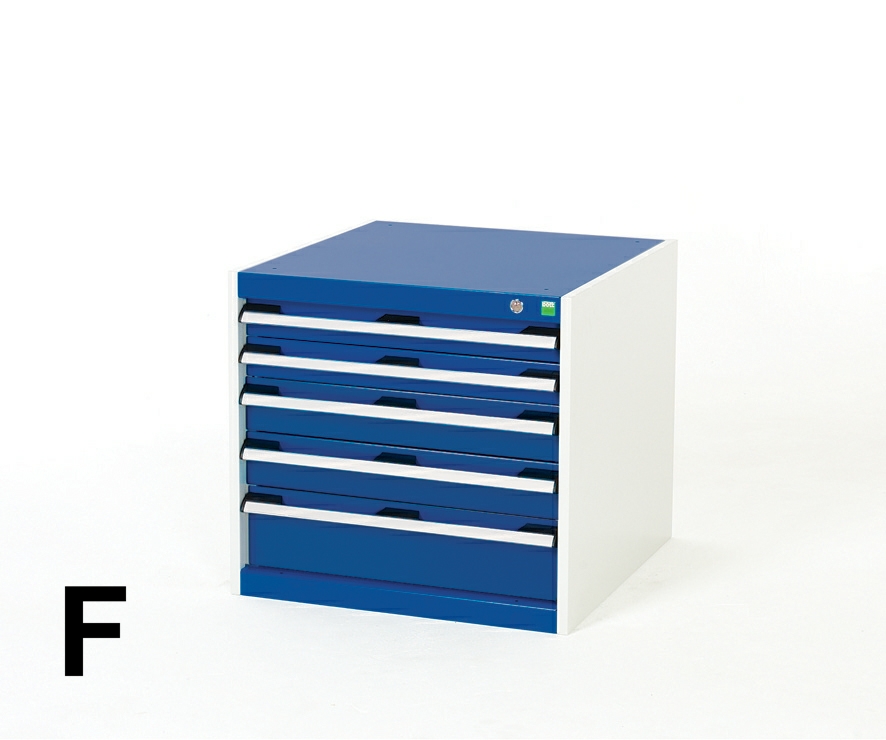

| F | 2x 75, 2x 100, 1x 150 | BC9152 | BC7102 | ||
Product features:
- 10 Year-extended guarantee
- Up to 800kg U.D.L. Capacity
- Comprehensive range of drawers
- Variety drawer colours
- Two worktop options Lino or MPX
